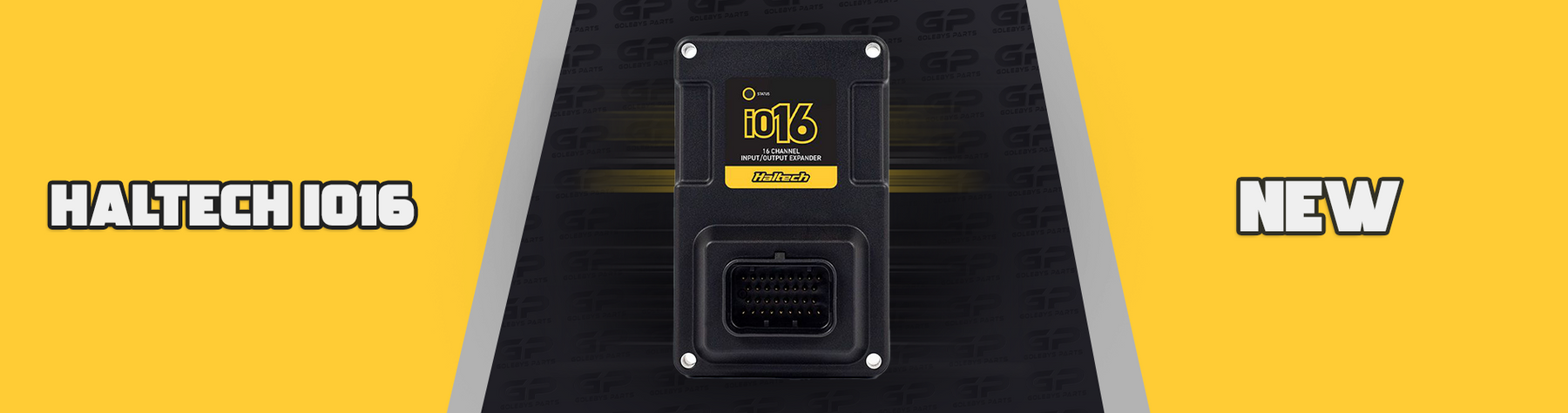

Haltech - iO16 - 16 Channel Input/Output Expander

Haltech have just announced a new product scheduled for the middle of 2025. Goleby's Parts will be excited to stock the new IO16, being able to support an additional 16 user-configurable input and output channels and accessible through the Haltech CAN system.

The Nexus IO16 is a Haltech CAN device that expands the functionality of a Haltech Nexus or Elite ECU by adding 16 user-configurable input and output channels, accessible through the Haltech CAN system.

SPECS

Supply voltage: 8V to 22V input voltage range

No reverse polarity protection

INPUTS

6 x Analogue Voltage Inputs (AVI)
• 0-5V readable range
• Selectable 1k pull-up resistor to 5V

4 x Synchronised Pulsed Inputs (SPI)
• Reluctor/Digital
• 0-5V readable range
• Selectable 1k pull-up resistor to 5V

OUTPUTS

6 x Half Bridge Outputs (HBO)
• 8A current (sink/source)
• Capable of 0-100% duty cycle
• 2.2khz switching speed
• NOT suitable for DBW throttle application

WARNING – When using HBOs, ensure the Nexus IO16 is powered using the constant power pins and power ground pins.

OTHERS

3 x 5V output (sensor power)
4 x Sensor ground
Note: Any 5V and sensor ground pins can be paired when wiring sensors.

FAQS

Will the IO16 be compatible with Haltech Platinum Range ECUs?

No, Nexus and Elite only

Will the IO16 be compatible with third-party ECUs?

No

Can I use the IO16 to run a DBW throttle?

No, this specific function needs to be directly controlled by the ECU

When will the IO16 be available to purchase?

We are aiming for mid-year 2025

How much will the IO16 cost?

TBA
