Goleby's Parts - Ultimate Haltech Rebel JZ Package!
At a glance: Haltech Nexus Rebel JZ + 1000cc Fuel Injector Kit + R35 Coil Kit
PRE-SALE PRODUCT - Expected to Ship February 2026
With the Rebel JZ, all the hard work is done. It is the best, quickest, and easiest way to get your JZ swap up and running and Goleby's Parts have taken it one step further to get incredible savings with the ECU bundled together with 1000cc injectors, fuel rail & a GP R35 Coil Kit. We have added the option to save even more when combined with one of Haltech's Digital Displays. This ultimate kit is the perfect start to your JZ swap!

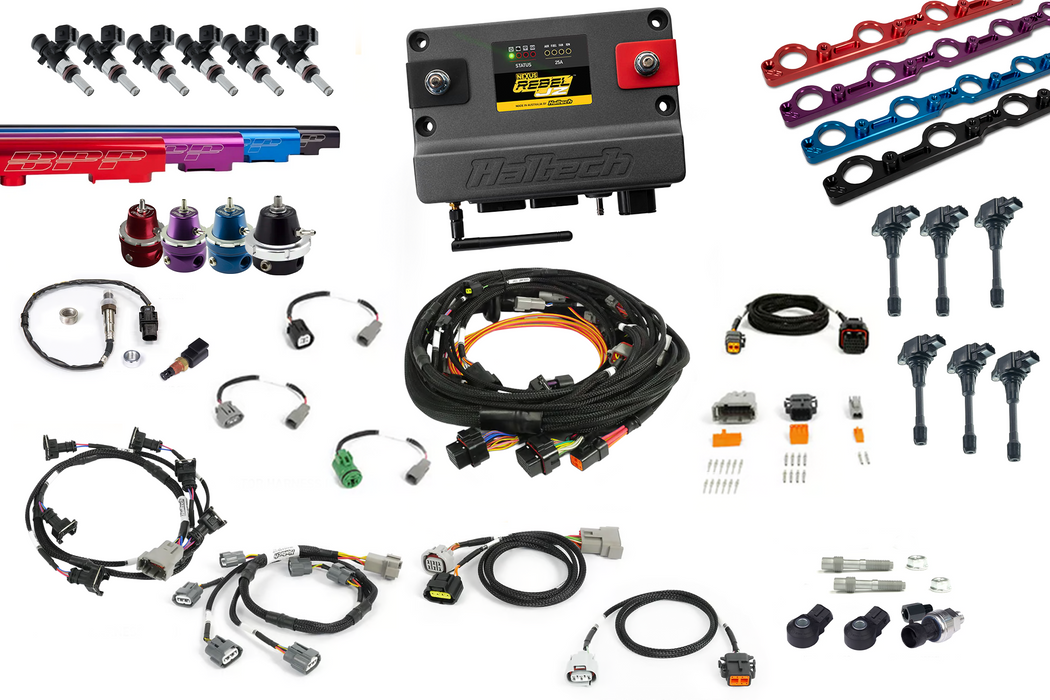

Package Contains:
- HT-220002 - Rebel JZ ECU
- BPP JZ Fuel Rail (Radium for 2JZ-GE VVTi)*
- Bosch Motorsport 1000cc Injectors x6
- Turbosmart AN6 Fuel Pressure Regulator
- Goleby's Parts - JZ R35 Coil Bracket
- Hitachi R35 Coils x6
- HT-186400 - Main Harness
- HT-187005 - Toyota R154 Harness
- HT-186169 - xJZ Cable throttle adaptor
- HT-186004 - i6 EV1 Injector Sub-Harness
- HT-186063 - i6 R35 Ignition Sub Harness
- Bosch LSU 4.9 Sensor
- Weld on fitting for O2 Sensor
- Air Temperature Sensor M14 x 1.5
- Weld on fitting for Air Temp Sensor
- 2 x Bosch Knock Sensors and adaptors
- 1 x 150 PSI Fuel & Oil Pressure Sensor
- 1 x 1/8BSPT male to 1/8NPT female adapter (Oil pressure sensor fitting)
Optional Extras:

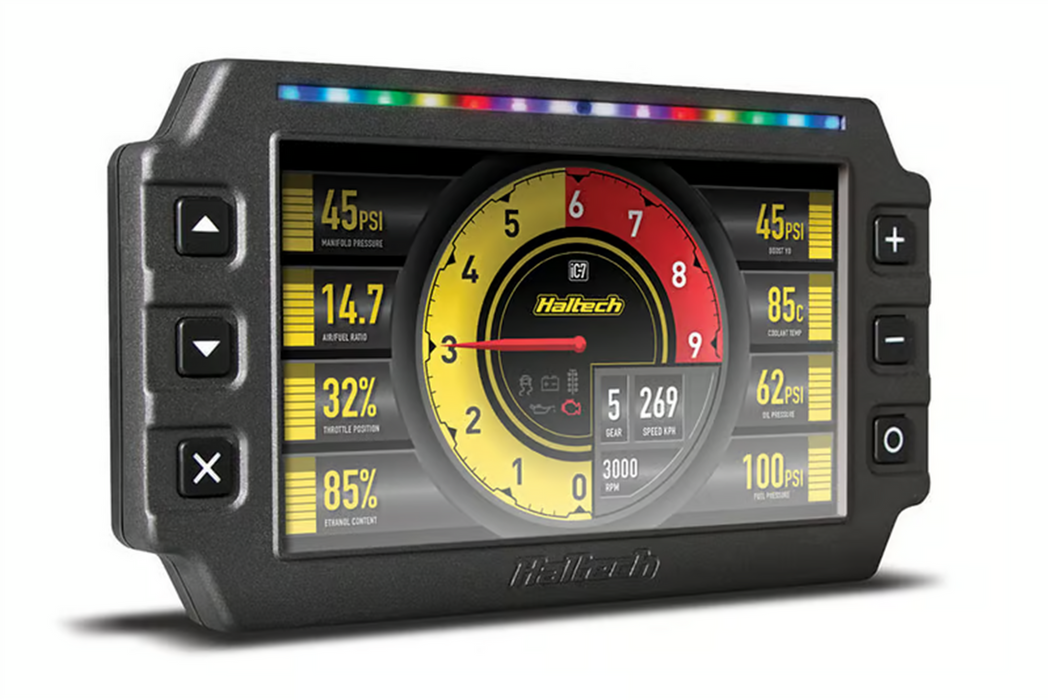

- iC-7 Digital Display - HT-067010

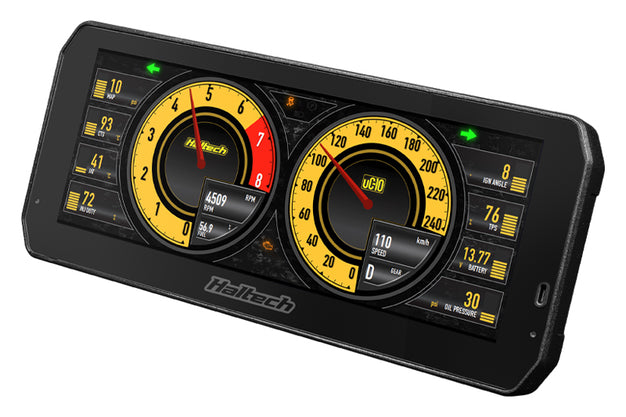

- uC-10 Digital Display - HT-068000
ECU designed from the ground up to suit Toyotas popular JZ engine platform
Start-up is a breeze thanks to the new Set-up Wizard in our NSP software
Comes complete with an easy-to-install harness to suit multiple Toyota JZ applications
Easy integration with Haltech dashes, PDMs, sensor kits, and accessories
Kit Supports:
1JZ-GTE Non-VVT-i
1JZ-GE VVT-i
1JZ-GTE VVT-i
2JZ-GTE Non-VVT-i
2JZ-GE VVT-i (Only Black Radium fuel rail available)*
2JZ-GTE VVT-i
Please note:
Harness is supplied with ignition harness to suit R35 Coil conversion, Conversion kit available to be purchased separately from Haltech see part number - HT-120200
Does Not Support
Toyota Electronic Throttle Control System - Intelligent (ETCS-i) - aka semi DBW, Distributor ignition systems, Wasted spark ignition systems, Low impedance injectors , Sequential twin turbo setup, 1JZ OEM Coolant Temperature Sensor
