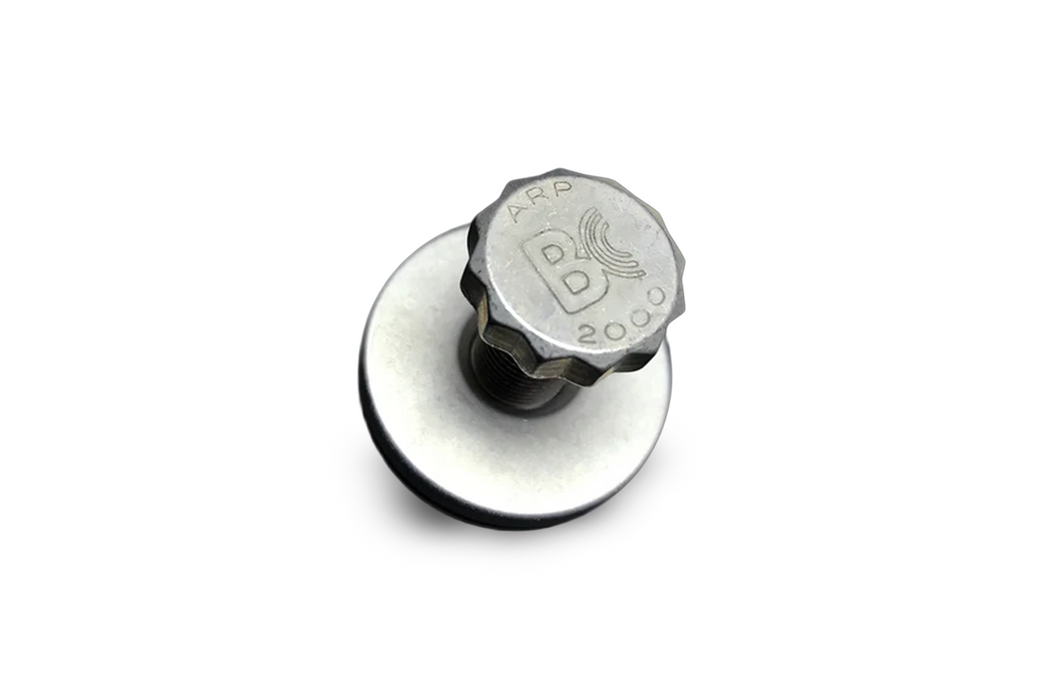

Brian Crower - 1JZ/2JZ Cam Gear Bolt/Washer

Brian Crower 1JZGTE/2JZGTE-GE Cam Gear Bolt/Washer

BC cam bolts for the 2JZ and 1JZ engine platforms are made from ARP2000 material and feature a silver CAD plated finish to eliminate corrosion from handling. Hardened to RC 45-47, and includes plated washer (.200” thick) , the new BC cam bolts secure the cam gears permanently without the stretch common with OEM fasteners. Reduces the risk of the gear coming loose and causing severe engine damage. Works with all brands of camshafts and cam gears. The BC bolt features 0.900” under head length with OEM thread pitch. Bolts not sold separately from washer, sold as one complete unit, order two if using two gears, one if VVTi.

Torque cam gear bolt to 60 ft lbs using straight motor oil.

Would Suit :

All 1JZGTE/2JZGTE/2JZGE

Other Information:

Suits all NON VVTI motors and only the exhaust cam side of a VVTI motor. 1x Bolt/Washer included.
