8HP Oil Cooler Adapter - 8HP55/95 - RS6/RS7 - Type 5

8HP Oil Cooler Adapter - 8HP55/95 - RS6/RS7 - Type 5

Please note this is not usually a stocked item, lead times may apply. Domiworks/8Speed.au special order items on average usually take 2-3 weeks. Contact us if your order is urgent.

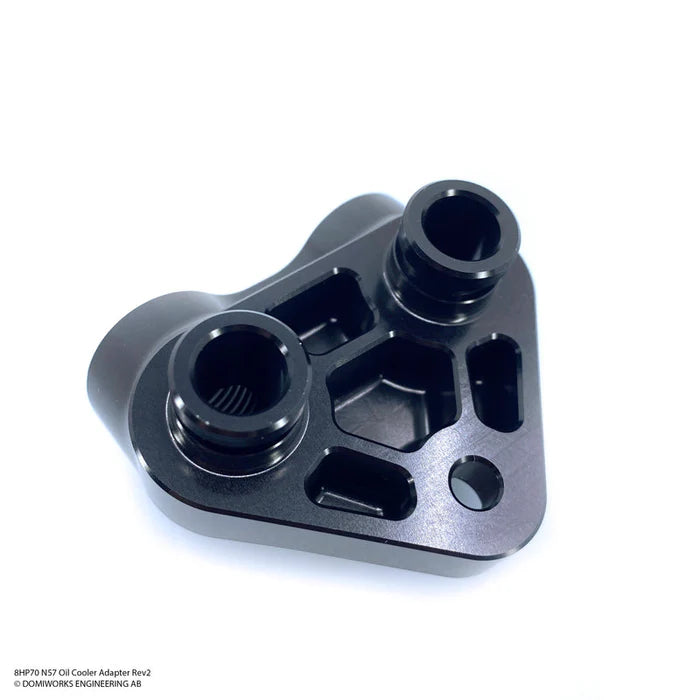

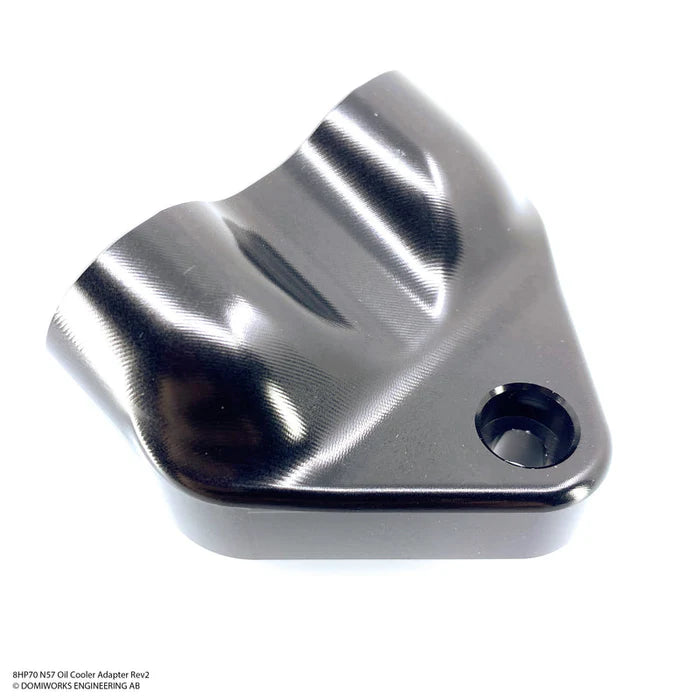

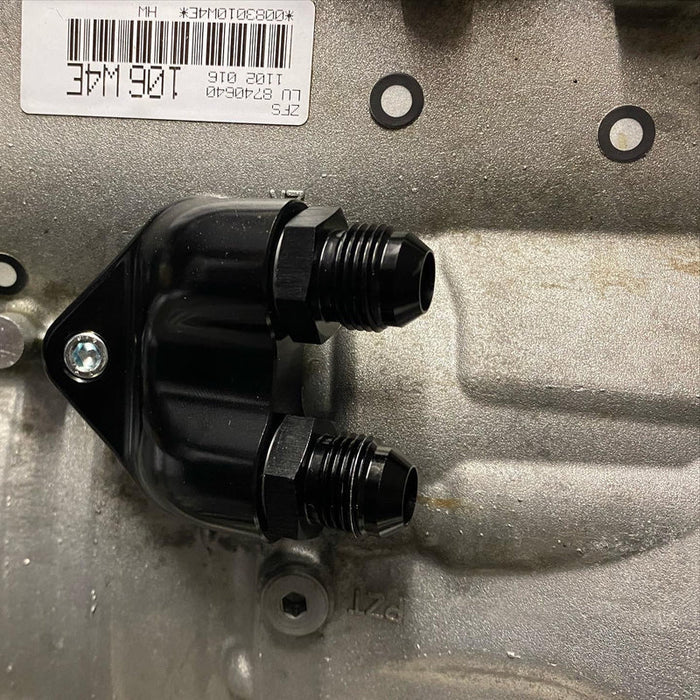

8HP Oil Cooler Adapter for Audi 8HP55/95 RS6/RS7

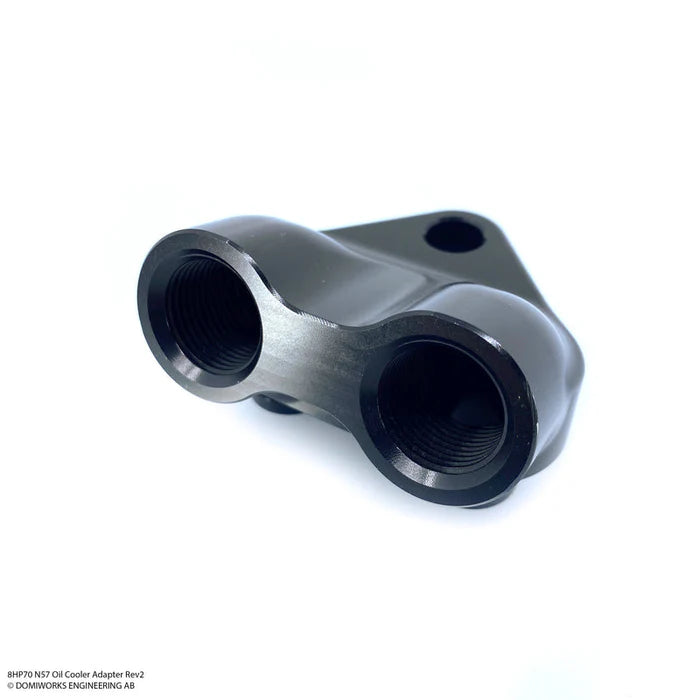

An updated slimmer and lightweight design to follow the gearbox as close to the body as possible. Converts the gearbox oil outputs to two AN8 threaded output, thread ¾-16.

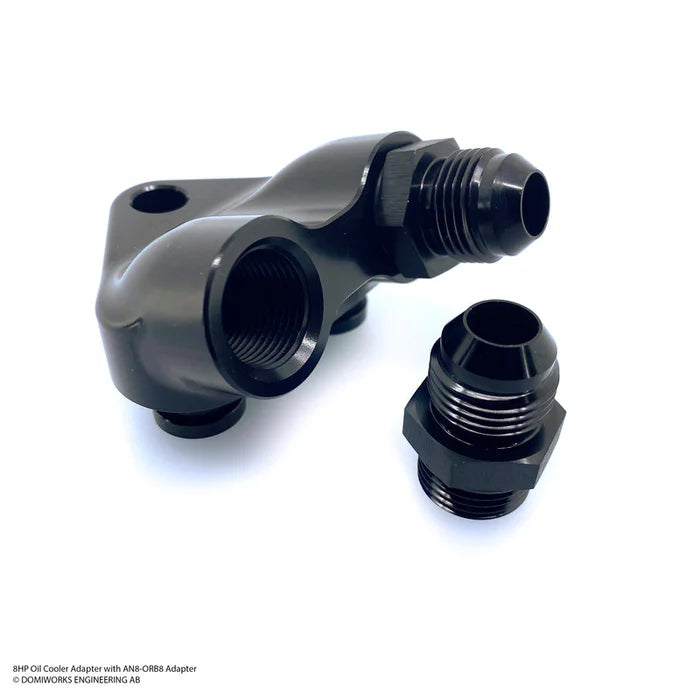

Supplied with ORB8 fittings.

Made by high grade alumium and beautifully 5-axis CNC gives a smooth and attractive look, no bulky straight lines here 😉 Big bore internal oil passages to ensure maximum flow. Anodizied black and laser engraved for a premium feel and experience.
We would like to claim this it the best performing, most lightweight and most beautiful looking oil cooler adapter on the market.

The Audi 8HP55/95 has 16 mm bores with M6 mounting bolt. Comes with bolt and o-rings, high quality AN8 adapters available separately.

NOTE! We have found that the most 8HP55/95 has same oil bores but the mounting bolt position is different. For example A6/S6 transmission will fit but hole location is different.

If you are unsure of the correct sized adapter you need, dont hesitate to contact us.
