Atomic Tool Steel Head Stud Kit – Ford Barra DOHC | 12mm Standard | Strongest in Class
In the world of high-horsepower fasteners, you typically have two choices: standard chromoly studs (good for ~800hp) or exotic super-alloy studs like Custom Age 625+ (good for 2000hp+, but with an eye-watering price tag). For most serious Barra builds, the standard stud is too weak, but the 625+ is overkill on the wallet.
H13 Tool Steel matches CA625 strength. Our H13 studs are rated to ~270,000 psi tensile strength—effectively identical to the ~260-280k psi rating of ARP CA625+ studs. The difference? You can buy an Atomic kit for nearly one-third of the price.
We filled the gap in the market by manufacturing our studs from H13 Tool Steel. To guarantee maximum fatigue resistance, our threads are cold-rolled rather than cut, and the entire stud undergoes a specialized heat-treatment process to lock in superior structural integrity. This material offers exceptional thermal stability and tensile strength, making it perfect for high-boost applications where head lift is a constant threat. Plus, we added features usually reserved for the most expensive kits, like external hex drives for easy installation.
We build engines, so we know the frustration of installing studs with only an Allen key slot. We fixed that.
-

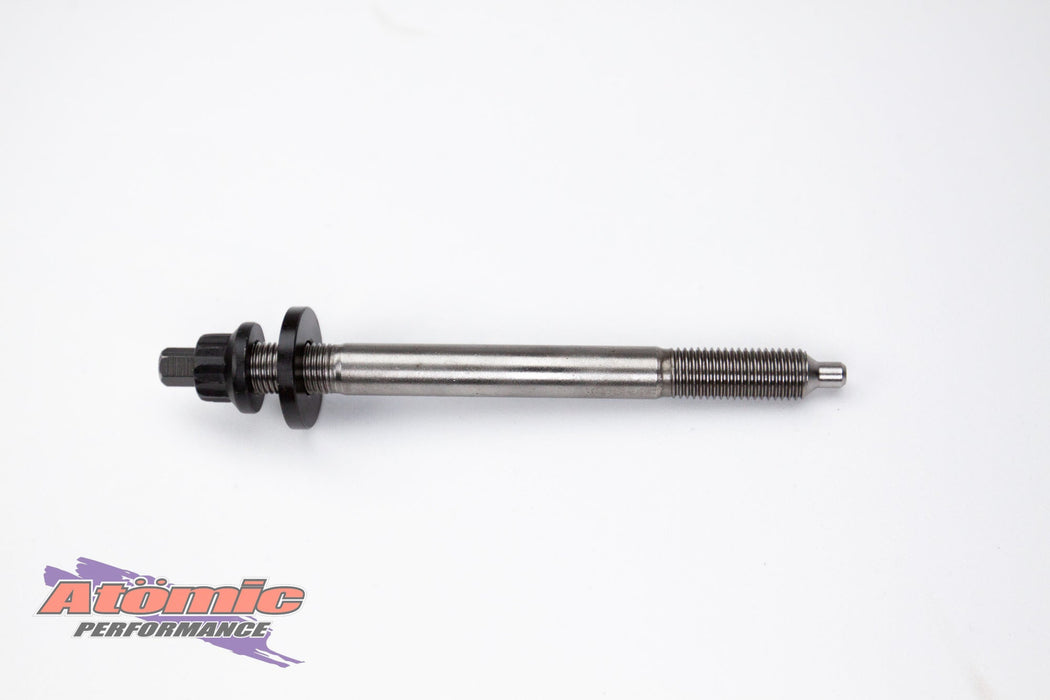

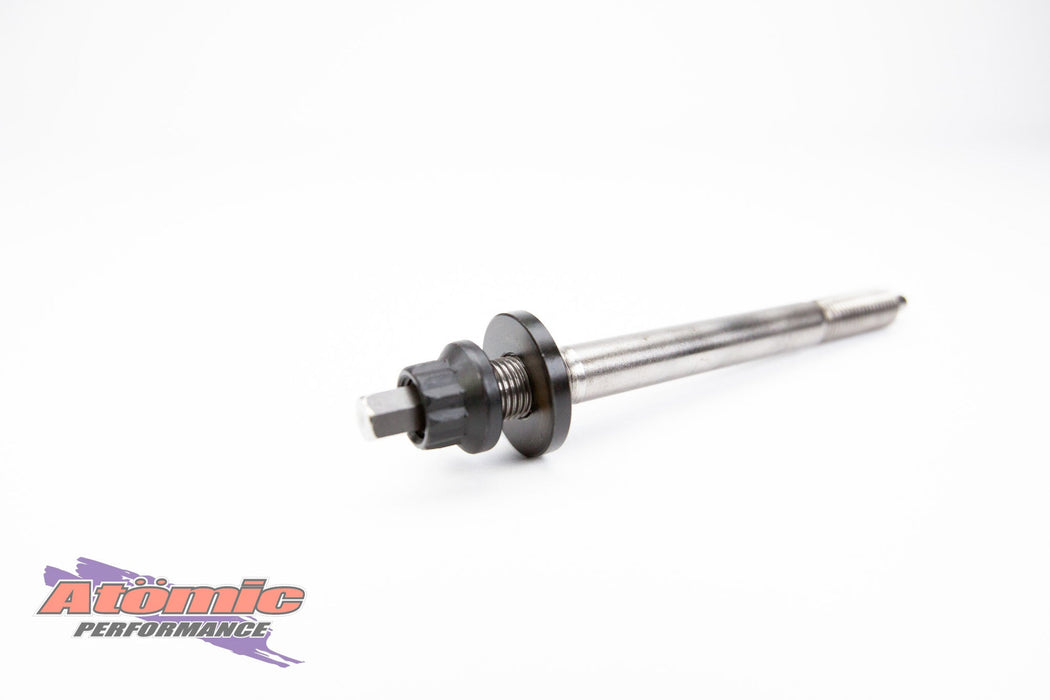

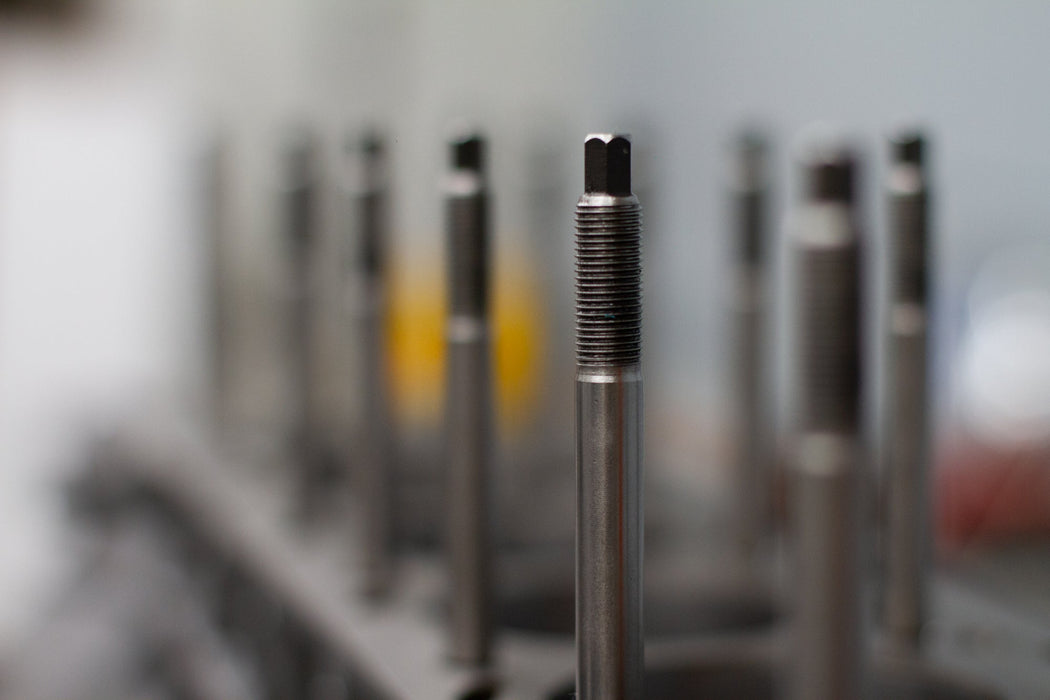

8mm External Hex Tip: Every stud features a machined hex tip, allowing you to easily wind them into the block by hand or with a socket. No more double-nutting or struggling with Allen keys.
-
Oversized Washers: Included in our premium kits, these spread the immense clamping load over a wider area of the alloy head, preventing the washer from crushing into the soft aluminium under high torque.
-
Direct Replacement: Designed to be a drop-in upgrade for the factory M12 head bolts.
| Grade / Material |
Tensile Strength (PSI) |
Price Bracket |
Key Characteristics |
| Atomic H13 Tool Steel |
~270,000+ |
$$ (Best Value) |
Stronger than L19 and ARP2000. Excellent thermal stability. |
| ARP 2000 |
~220,000 |
$$ |
Industry standard. Good all-rounder but can stretch under extreme boost. |
| Custom Age 625+ |
~260,000 – 280,000 |
$$$$$ (Extreme) |
Super-alloy. Extremely strong but typically costs 3-4x more. |
Tech Specs
Material: H13 Tool Steel
Tensile Strength: ~270,000 psi
Thread Size: M12 (Standard)
Features: 8mm External Hex Tip
Application: Ford Barra DOHC 4.0L
Installation Notes
-
Lubrication: You MUST use the supplied moly-based assembly lubricant on the threads and washers to ensure accurate torque readings.
-
Washers: Ensure the chamfered side of the washer faces UP towards the nut.
-
Torque Sequence: Follow the included torque sequence carefully. Do not over-torque, as these studs provide significantly higher clamping force than OEM bolts at the same torque value.
✅ Key Features:
✅ Suits all Ford Barra DOHC 4.0L 6-cylinder engines
✅ Strongest 12mm stud kit on the market
✅ Made from H13 tool steel – exceptional strength, fatigue resistance & thermal stability
✅ Direct-fit upgrade over factory M12 head bolts
✅ Reusable design – won’t stretch like torque-to-yield bolts
✅ Perfect for boosted street cars, track setups, and dyno builds
✅ Proven in Atomic-built Barra engines from mild to serious power
🛠️ Why Upgrade to Atomic 12mm Studs?
✔️ Massive improvement in clamping force and consistency
✔️ Prevents head lift and blown gaskets under boost
✔️ Handles high cylinder pressures without distortion
✔️ Designed for repeat use – ideal for engines that see rebuilds
✔️ A true no-compromise fastener for serious Barra performance

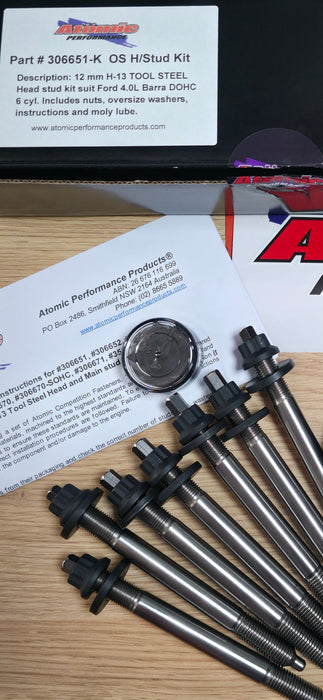

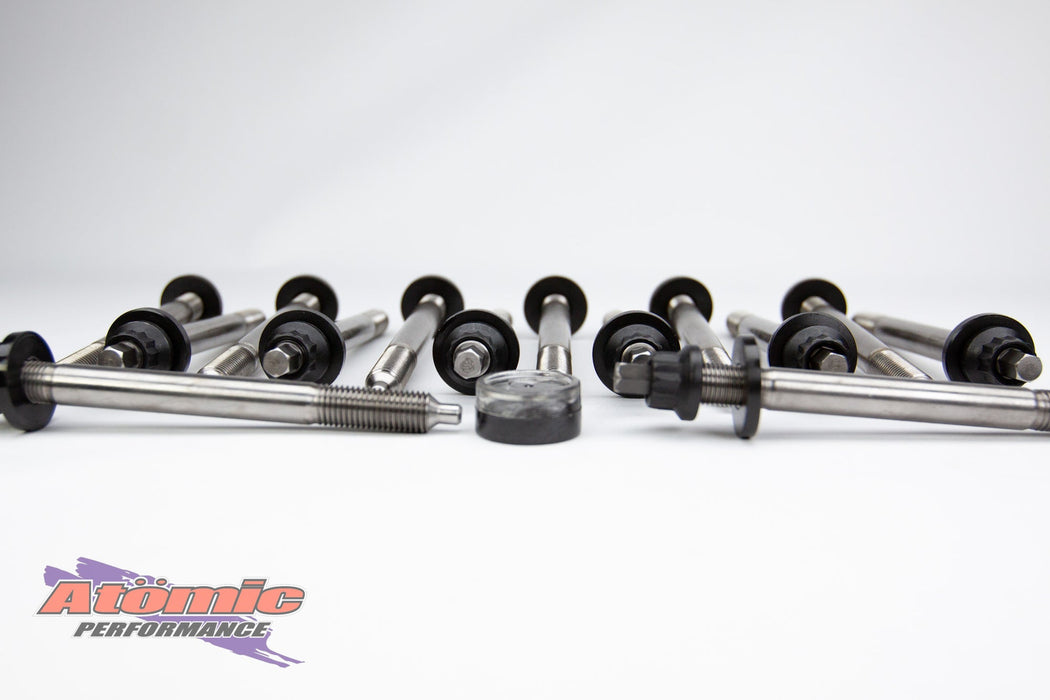

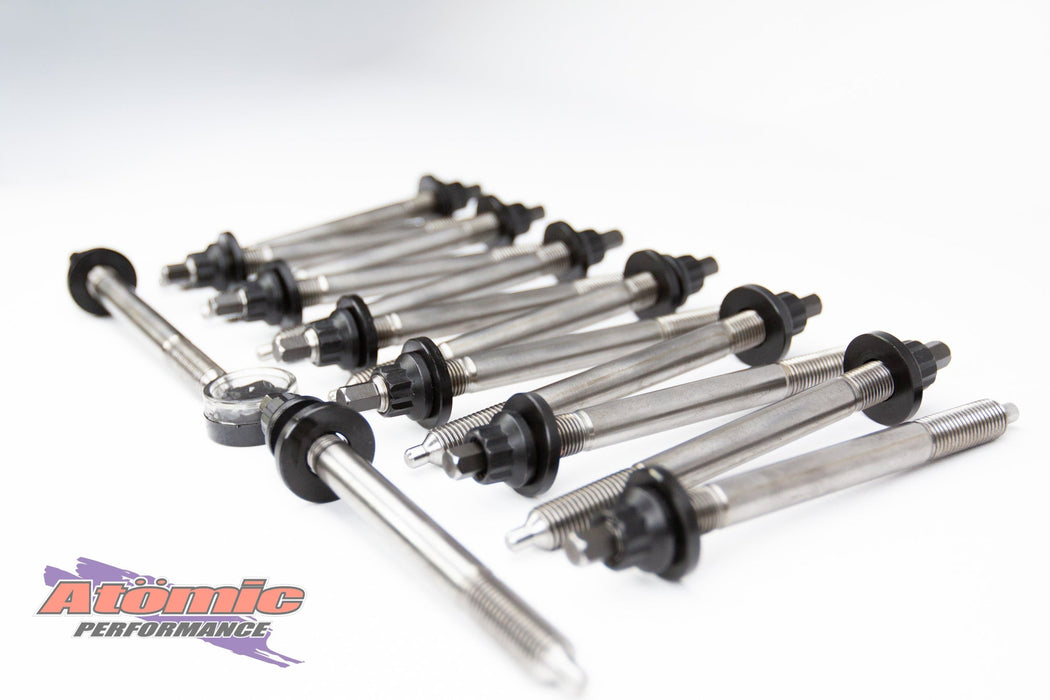

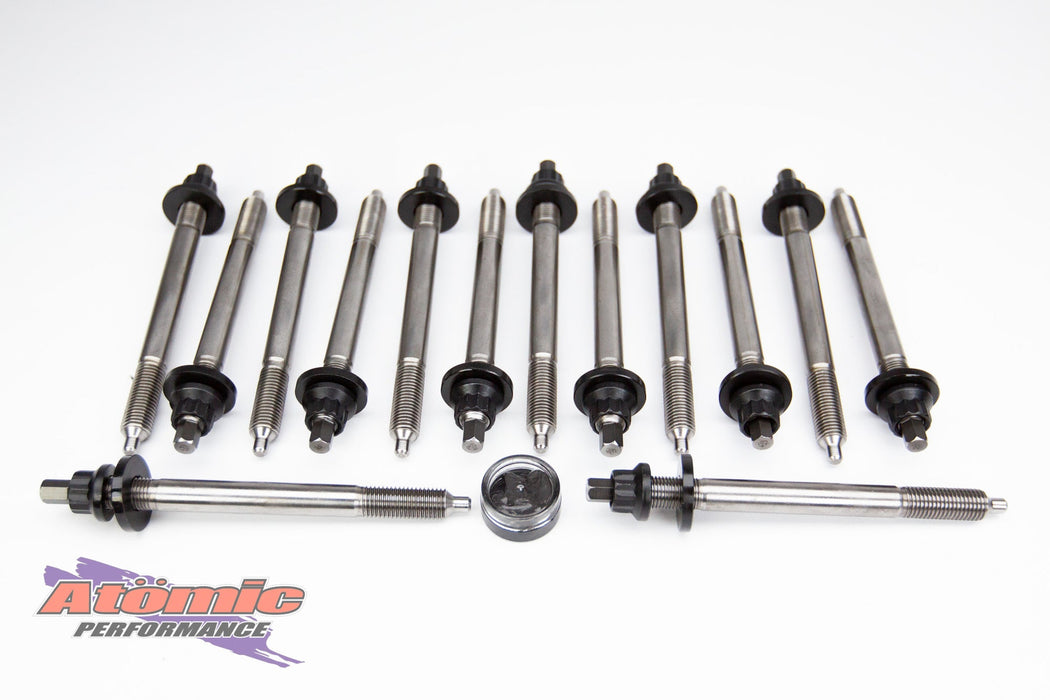

📦 What’s Included:
-
12x H13 tool steel head studs (12mm) – strongest in class
-
12x high-tensile 12-point nuts
-
12x hardened, billet washers
-
Moly-based assembly lubricant
