GRP Engineering - Toyota JZX100 J-Pipe Delete Kit

SKU
Original price $711.24 - Original price $1,251.11
Original price
$711.24
$711.24 - $1,251.11
Current price $711.24
Color: Raw

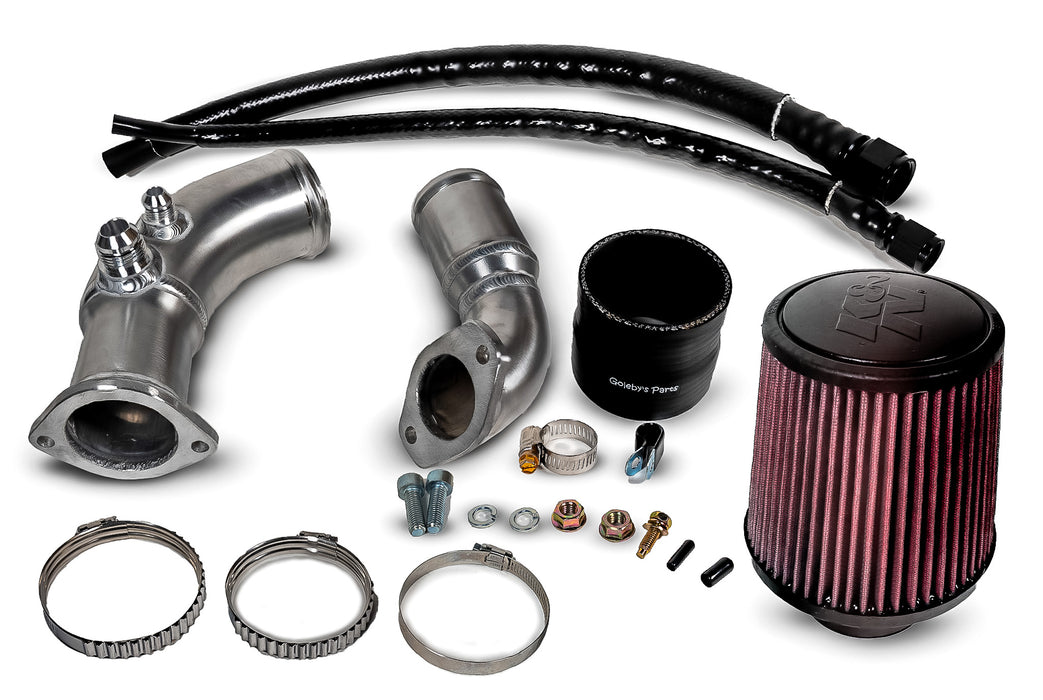

GRP Fabrication JZX100 J-Pipe Delete Kit comes with the following:

  • Turbo intake pipe
  • Turbo outlet pipe
  • K&N pod filter Re-0930
  • IACV line
  • Breather line
  • Vacuum block off’s
  • Hose clamps
  • Silicone joiner

This kit is designed to clear up engine bay clutter by replacing the j-pipe which comes factory on the 1jzgte vvti. The turbo inlet pipe is 3" and has a 8an welded bung to allow for recirculation from the cam cover and also a 12an bung for the IACV to be plumbed into. The turbo elbow outlet expands to 2.5" and goes to the factory intercooler piping location. All constructed from high quality locally sourced parts. It's available with either a no Bov option or the Turbosmart Dual Port Kompact Bov.

*Can be used with factory JZX100 1jzgte vvti ecu and MAF
