Haltech - Nexus Plug-in ECU - Nissan 300ZX / Fairlady Z32
Suits: Plug 'n' Play replacement of the factory ECU for the Nissan 300ZX / Fairlady Z32
Includes: Nexus Plug-in ECU, Air temperature + Wideband expansion harness 2.5m (8') and spare pins, Air temperature sensor (1/8 NPT), Mounting hardware, vacuum hose, T-piece, USB cable, Quick Start Guide.
Notes: Supports Manual Transmissions Only
The Haltech Nissan 300ZX / Fairlady Z32 Plug-in, as the name suggests, plugs directly into the Nissan harness, and nestles neatly into factory location .
Unlock enhanced capabilities with "OEM Plus" functionality via the auxiliary connector, enabling features such as O2 Control, Flex Fuel, Oil Pressure monitoring, Fuel Pressure sensing, and Drive by Wire Throttle.
And for serious drivers, the Nexus ECU unleashes potent Race Functionality, including CO2 Boost Control, Race Timer, Advanced Torque Management, Launch Control, Nitrous Control, and 128MB of onboard data logging.
Setting up your Fairlady Z has never been easier, thanks to the intuitive setup wizard in NSP software or the Haltech Connect App on your smartphone. Plus, Wi-Fi capability ensures effortless diagnostics and tuning on the go.

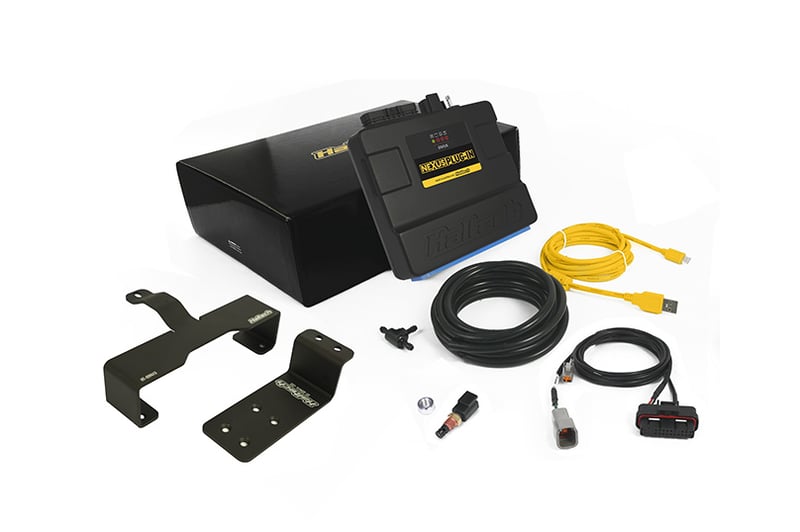

Nexus Plug-in ECU includes
- Nexus Plug-in Nissan 76 pin 6 cylinder ECU

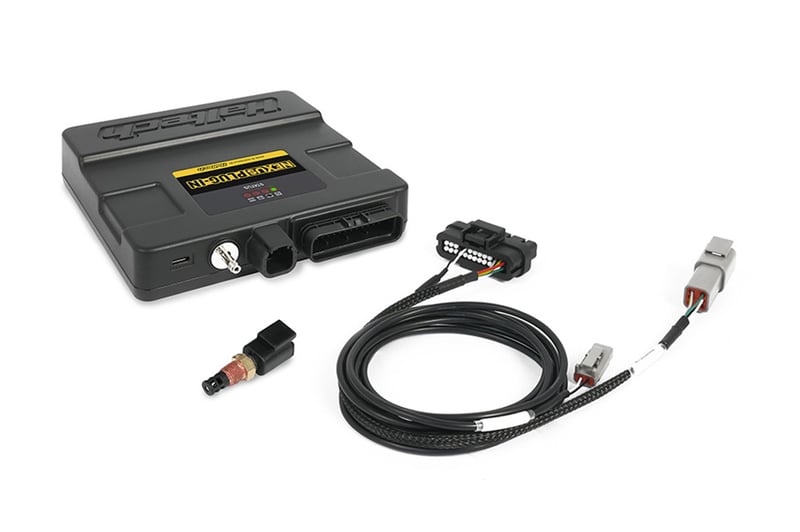

- Air temperature + Wideband expansion harness 2.5m (8')
- Air temperature sensor (1/8' NPT)
- Aluminium bung for air temperature sensor
- Mounting brackets and hardware to suit Nissan Fairlady Z32 OEM mounting locations.
- 3mm Vacuum hose 2.5m (8')
- 3mm Aluminium Vacuum T piece
- Haltech USB-C cable
- Quick start guide
NEXUS PLUG-IN ECU FEATURES
- Drive By Wire Throttle Support
- Single Channel Onboard Wideband Control - Supports LSU4.9/NTK
- Wi-Fi
- 4 channel onboard oscilloscope
- Data logging 128MB
- Flex Fuel
- Closed Loop O2 Control
- Dual Knock Control
- Variable Cam Control
- Long term learning

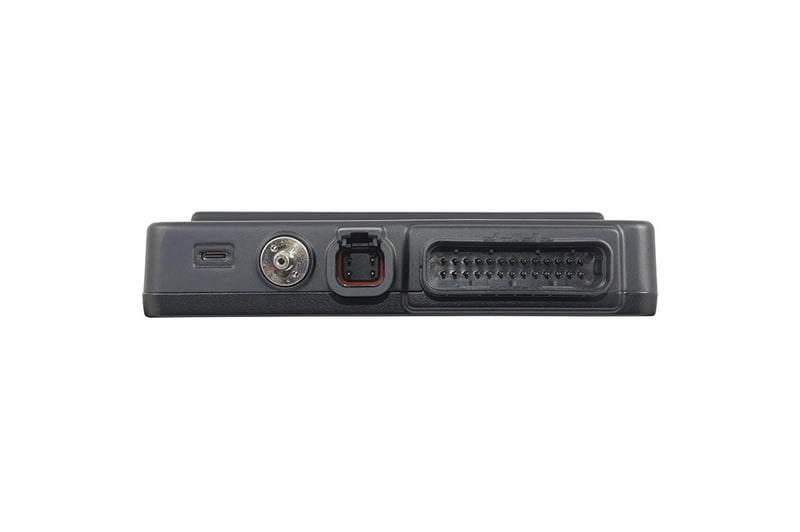

AUXILIARY CONNECTOR
- 4 X Digital Pulsed Outputs
- 4 X Synchronised Pulsed Inputs
- 4 X Analogue Voltage Inputs
- 2 X Half Bridge Outputs
- 1 X Onboard Wideband
- 2 X Sensor Ground
- 2 x 12V Output
- 2 x 5V Output
SUPPORTED OEM FUNCTIONALITY:
- Variable speed fuel pump
- Boost Control
- A/C Output
- Idle Control
- Thermofan
- VCT Switched (N-VCT)
- Check Engine Light
- Fuel Pump Control Module
- Narrowband Sensors
- Vehicle Speed
