Haltech - NEXUS Rebel JZ
PRE-SALE PRODUCT - Expected to Ship February 2026
With the Rebel JZ, all the hard work is done. It is the best, quickest, and easiest way to get your JZ swap up and running!
ECU designed from the ground up to suit Toyotas popular JZ engine platform
Start-up is a breeze thanks to the new Set-up Wizard in our NSP software
Comes complete with an easy-to-install harness to suit multiple Toyota JZ applications
Easy integration with Haltech dashes, PDMs, sensor kits, and accessories
Kit Supports:
1JZ-GTE Non-VVT-i
1JZ-GE VVT-i
1JZ-GTE VVT-i
2JZ-GTE Non-VVT-i
2JZ-GE VVT-i
2JZ-GTE VVT-i
Please note
Harness is supplied with ignition harness to suit R35 Coil conversion, Converison kit available to be purchased seperately from Haltech see part number - HT-120200
Does Not Support
Toyota Electronic Throttle Control System - Intelligent (ETCS-i) - aka semi DBW, Distributor ignition systems, Wasted spark ignition systems, Low impedance injectors , Sequential twin turbo setup, 1JZ OEM Coolant Temperature Sensor
Kit Includes:
- HT-220002 - Rebel JZ ECU
- HT-186400 - Main Harness

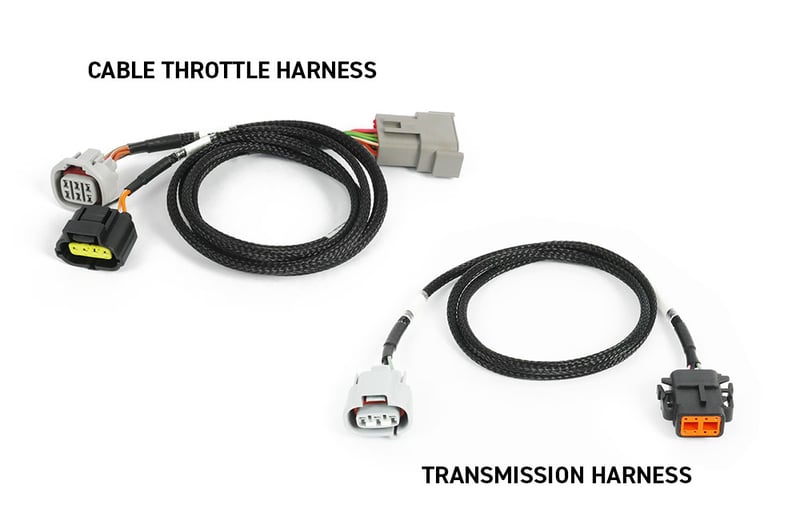

- HT-187005 - Toyota R154 Harness
- HT-186169 - xJZ Cable throttle adaptor
- HT-186004 - i6 EV1 Injector Sub-Harness
- HT-186063 - i6 R35 Ignition Sub Harness

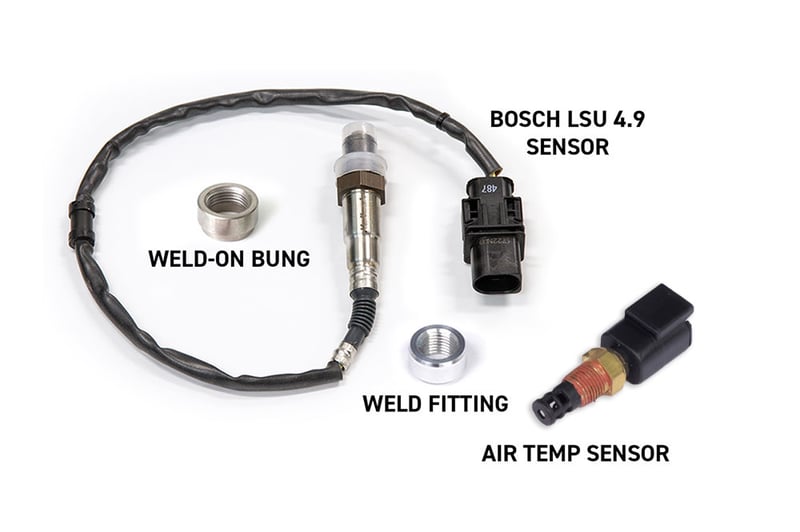

Sensor Pack
- Bosch LSU 4.9 Sensor
- Weld on fitting for O2 Sensor
- Air Temperature Sensor M14 x 1.5
- Weld on fitting for Air Temp Sensor

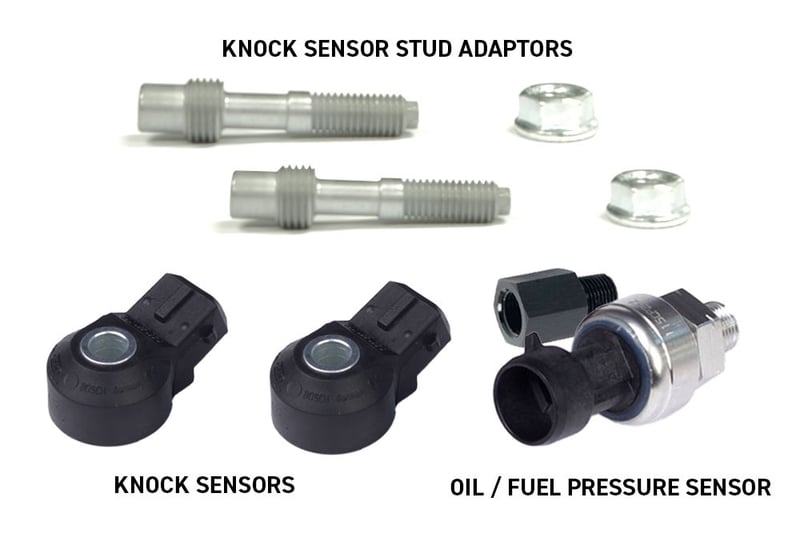

- 2 x Bosch Knock Sensors and adaptors
- 1 x 150 PSI Fuel & Oil Pressure Sensor
- 1 x 1/8BSPT male to 1/8NPT female adapter (Oil pressure sensor fitting)
