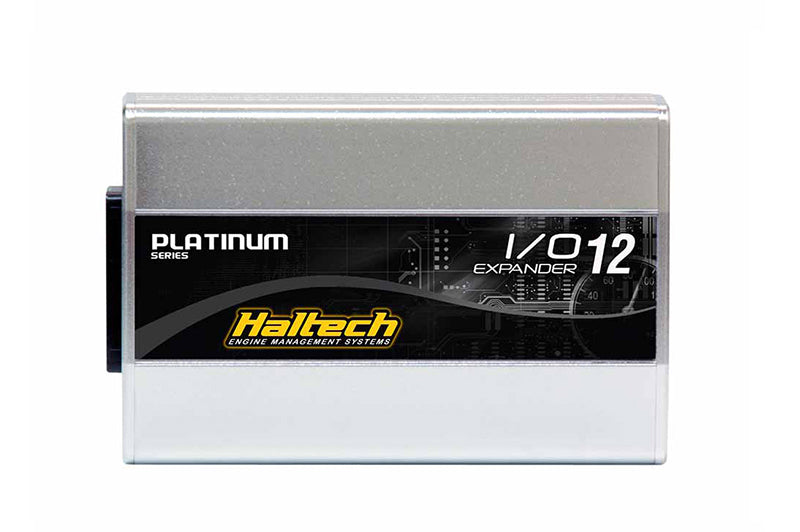

Haltech IO 12 Expander - 12 Channel with Plug & Pins Kit (CAN ID - Box B)

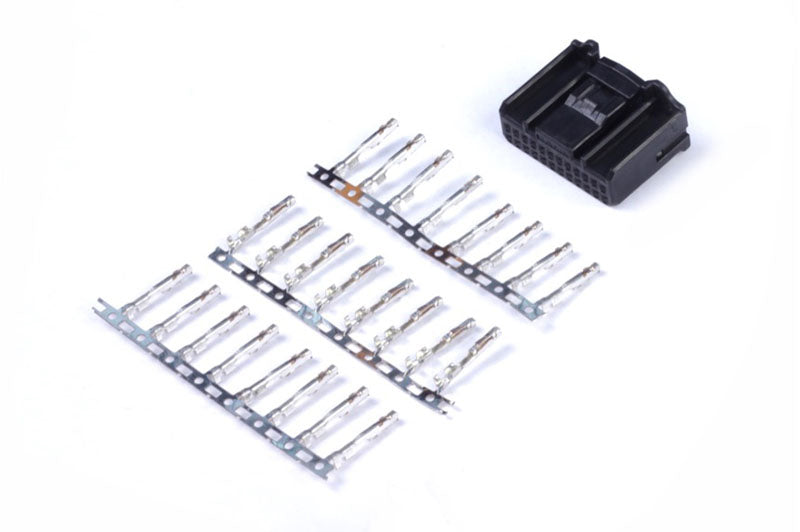

Plug and Pins Only 24 Pin TYCO

As supplied this product is direct Plug 'n' Play compatible with an Elite ECU CAN port, Elite ECU Harness CAN connector or mutiple CAN device installation using an Elite 4 Port CAN HUB. If you are connecting this product with a Platinum Pro Plug-in, Sport or Sprint ECU please order a Haltech CAN Cable (8 pin Black Tyco to 8 pin Black Tyco) in a suitable length for your specific installation. If you are connecting this product with a multiple CAN device installation using a Platinum 3 or 6 port CAN HUB please order a Haltech CAN Cable (8 pin White Tyco to 8 pin White Tyco) in a suitable length for your specific installation. in a suitable length for your specific installation. Cables are available from 75mm (3") to 3600mm (144") Please see the product Quick Start Guide for further information on selecting the correct colour CAN cable for your specific installation.

Outputs: 4 Digital Pulsed Outputs (DPO) 4 Digital Pulsed Inputs (DPI) 4 Analogue Voltage Inputs (AVI)

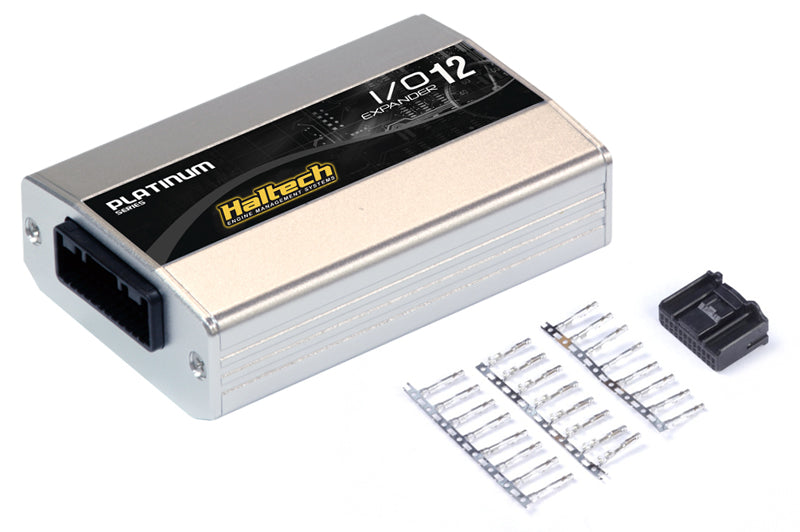

Includes: IO 12 Expander with matching 24 Pin TYCO plug and Pins, Elite CAN cable DTM-4 to 8 pin Black TYCO - 300mm (12")

Notes: Combine two IO 12 Expanders with different CAN ID's (Box A or B) for up to 24 additional channels (subject to ECU compatibility)
