Ross Performance - 1JZ/2JZ Stage 5 Dry Sump Kit

Toyota JZ External Oil Pump Dry Sump System – 5 Stage

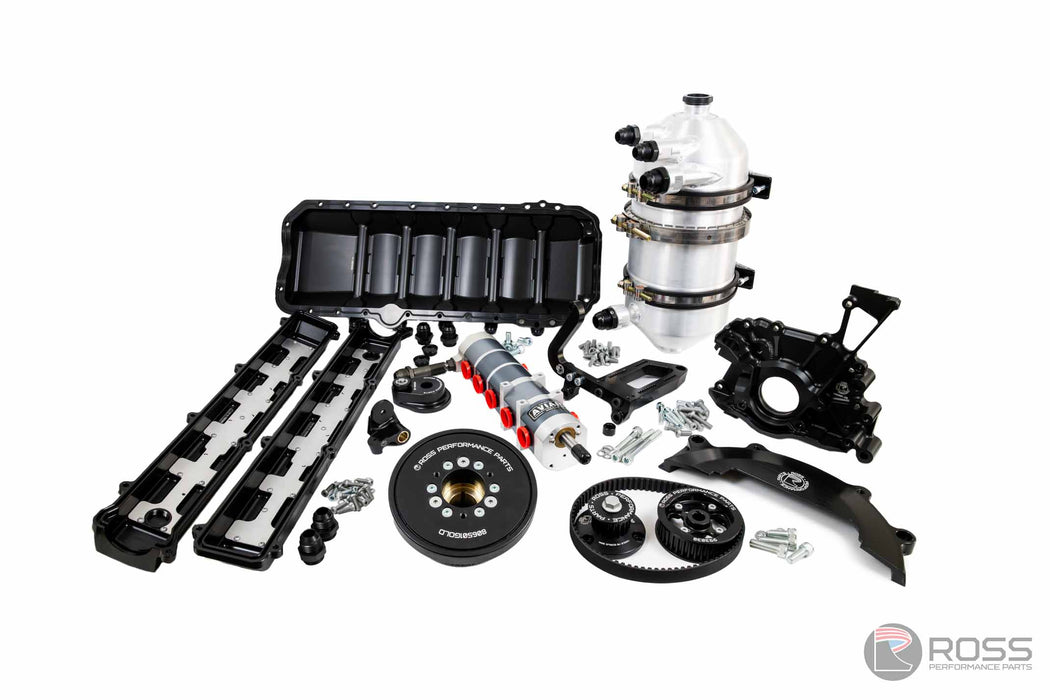

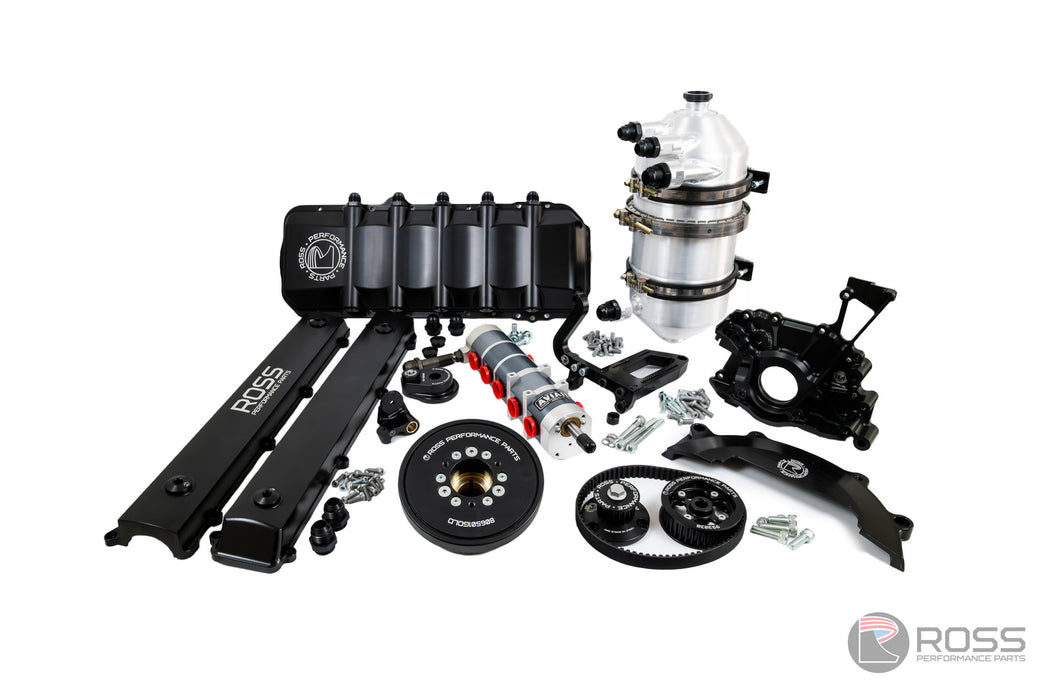

The Ross Performance Parts Toyota 1JZ / 2JZ / 2JZ-VVTi Dry Sump Kit is a comprehensive oiling solution for your high performance JZ engine. Ross Performance Parts Dry Sump Kits are designed to fit and work together without modification to any other engine component.

• Toyota 1JZ / 2JZ Race Series Harmonic Damper (806501).
• Toyota 1JZ / 2JZ Billet Dry Sump (806001-11).
• Aviaid 5 Stage External Oil Pump – LH Mounting with 1 x 1.75” Pressure and 4 x 1.75” Suction (9950511-4545).
• Aviaid Dry Sump Tank – 3 Gallon Capacity (Aviaid Oil Tank 3GAL).
• Toyota 1JZ / 2JZ Oil Pump Left Hand Mounting Bracket (806001-18).
• Toyota 1JZ / 2JZ Billet Lower Bellhousing Cover (806001-12).
• Toyota 1JZ OR 2JZ Billet Cam Covers (Pair) (806001-14 OR 806002-14 OR 806002-14-SP1).
• Toyota 1JZ / 2JZ Oil Return Adaptor (Dry Sump Conversion) (806001-25).
• Toyota 1JZ / 2JZ Billet Oil Pump Blanking Plate (806001-26).
• Universal Dry Sump Drive Adaptor with 19T HTD Pulley (991000-19HTD).
• 38T HTD Oil Pump Pulley with Pulley Shields (991038).
• 8mm HTD Oil Pump Drive Belt – 624mm x 20mm (993624-8M-20).
• Toyota 1JZ or 2JZ Tensioner Bracket (Timing Belt) (806001-48 or 806002-48).

Note: to utilise this kit the air conditioning must be removed.

All Ross Performance Parts Dry Sump Kits can be customised/altered to suit your specific engine requirements.
