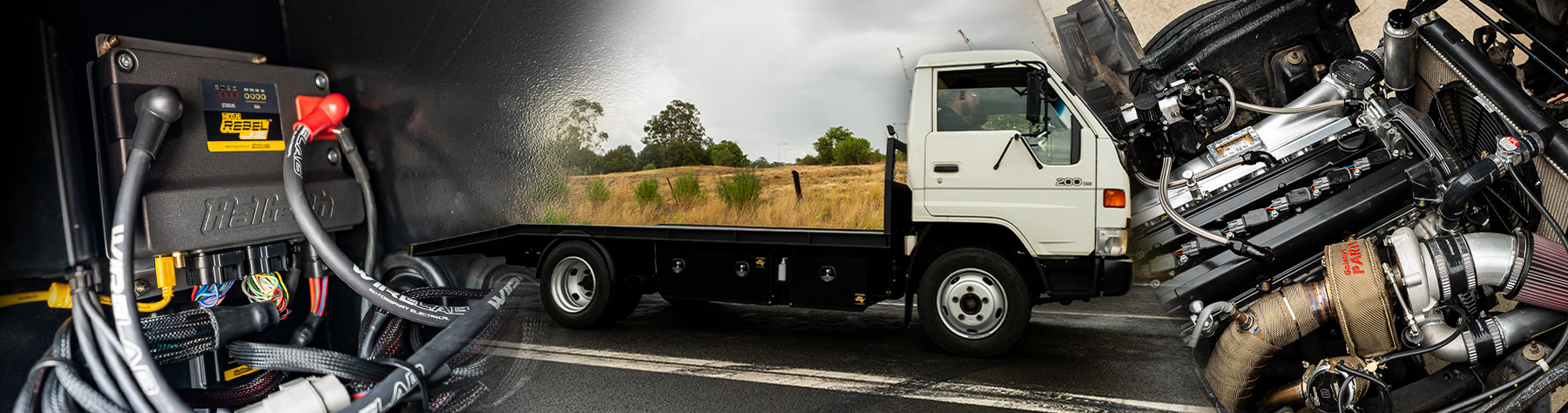

Goleby's 1JZ 550hp Dyna Truck
The VaDyna work truck,
After previously having a 1970's Dyna truck to get us to and from race events with our Yellow 1JZ corolla it was time to step it up with a fresh build. We found this 2002 Toyota Dyna with a blown diesel engine after being run low on oil, with only 80000Kms on the clock it was the perfect base for our next work truck.
The end result 550hp at the tyres and a truck that does everything a truck should.
Turbosmart 5862 Turbocharger
Turbosmart Dual Port BOV
6Boost Vband Manifold
Golebys Parts Turbo Beanie Golebys Parts Wastegate Beanie
Standard intake (originally Hypertune but was removed for better low rpm torque)
Bosch 74mm ThrottleBody
BPP Fuel Rail
PWR Intercooler8HP75 Built by Gilroys Race Transmissions
Standard convertor
DomiWorks Adaptor
ATF Flexplate
Turbo Lamik TCU
PWR 28 Row Oil Cooler + Spal Fan
Standard Dyna 12 inch 5.9 ratio diff
Haltech Rebel JZ
Haltech IC-7 dash
Haltech CAN Keypad
Goleby's R35 Coil Kit
Bosch 1000cc injectors
Turbosmart FPR6
Twin 460Lph Walbro Pumps
Goleby's Parts Surge Tank
Toyota 1JZGTE VVT-I
- Kelford Camshafts 260/260 Duration VVTi (V229-B)
- Kelford Valve Spring Kit (KVS109-1JZ)
- GRP Engineering VRS Gasket Kit (GRP-1JZVVTI-VRS)
- Brian Crower 1mm + Oversize Valves (BC3312+BC3313)
- ARP Head Stud Kit (203-4205)
- CP Forged Pistons including rings, pins and circlips
- Nitto Street Division H-Beam Conrods (SD-ROD-1JZH)
- ARP Main Stud Kit (203-5405)
- ACL Race Series Bearings (7M8103H+6B8100H+2T8103)
- OEM 2JZGTE Oil Pump (15100-46052)
- GRP Engineering Bottom End Gasket Kit inc Silicone (GRP-BE-GSKT-KIT)
- GRP Engineering Oil Gallery Bungs (GOL-BALLS)
- 1JZ/2JZ Welch Plug Kit (JZWELCH)
- OEM Toyota Water Pump VVTi (16100-49856)
- Gates Racing Timing Belt Kit inc Billet Bracket & Adjustable Cam Gears
- Ross Race Series Harmonic Balancer (806501)
Custom Beavertail Tray
Repaint by GreenBury Panel and Paint
17.5" Steel wheels
Madoc Tuning, 8 Speed Au, Wirelab and Matt at Greenbury Panel and Paint for the paint job.
