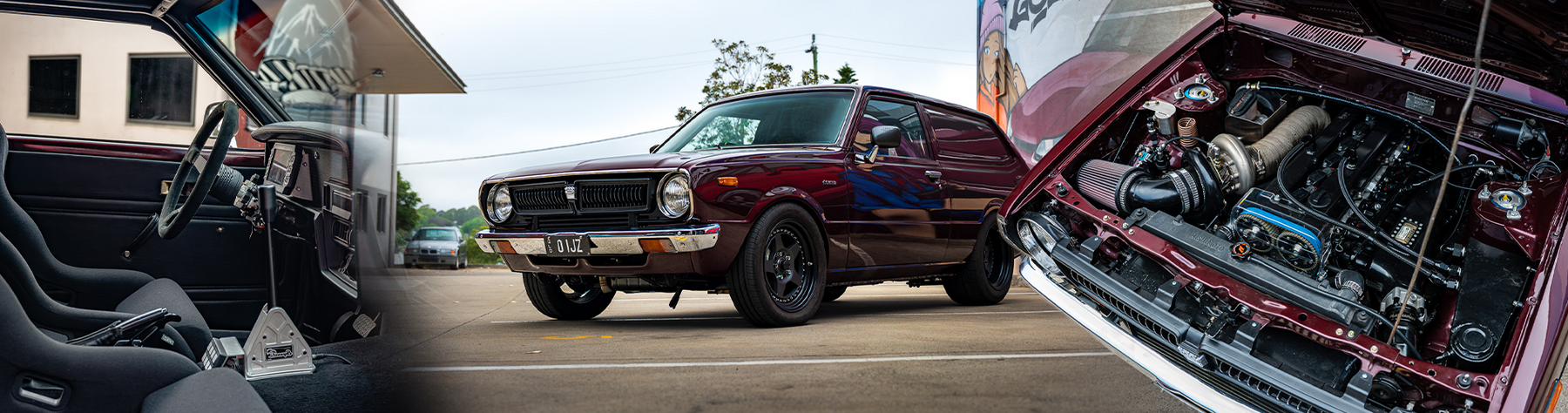

Kristian's 1JZ 8HP KE38 Corolla
Kristian has always been a KE corolla fan and wanted to build his ultimate idea of a street and drag KE38 Panel van.
His goal as always was to keep the car all toyota, so a 1JZGTE non vvti was the engine of choice, a 50 series 8HP gearbox as found in the A90 supra for the transmission and a Hilux diff down the back. Streetable was the number one priority, not a huge lag monster or something you didnt want to get in and drive every day yet still capable of mid to low 8 second passes was the plan.
Making 1100.7HP at the hubs with 39Psi of boost and a 70HP shot of nitrous, air filter and muffler were also removed for this dyno run. Et so far 8.63 with a soft 1.41 60 Foot, more power will be added at our next events for some runs lower into the 8's.
Precision Next Gen 7275 Turbo
Turbosmart 50mm pneumatic straight gateTurbosmart Raceport BOV
6Boost custom promod manifold to fit corolla
Goleby's Parts turbo beanie
Plazmaman 6 injector intake manifold
Bosch DBW 74mm Throttle Body
Single 6 injector fuel rail
Single 6 injector fuel rail
Custom Intercooler Piping using Plazmaclamps
8HP50 Built by Gilroys Race Transmissions
Turbo Lamik TCU controller
Domiworks adaptor plate
Pure converter
ATF Flexplate
PWR 28 Row Oil Cooler + Spal Fan
Hiace diff housing, Hilux diff centre and Race Products floater axles
Corona front struts with Koni Double adjustable shocks
Hilux 4 spot front calipers with Crown 5 stud hubs
Gazzard Brothers ARB, Mono leaf Springs and rear shocks
Haltech PD16
Haltech CAN Keypad
Haltech EGT's
Goleby's R35 coil kit
Siemens Deka 2400cc Injectors
Aeromotive 5.0gph Brush Less Pump
Toyota 1JZ-GTE Non VVT-I
Spool 2.7 litre stroker kit
Real Street billet main caps
Kelford 229-D 272/278 camshafts
Kelford KVS109-1JZ-T springs and retainersFerrea Intake & Exhaust Valves
Shimless Bucket Conversion
Grp Gaskets and seals
Gates racing timing kit with billet tensioner
Toyota water pump
Goleby's Parts Cam Gear Titanium Retainer With Bolt
Custom Houreh wheels for racing
15x6 fronts, 15x10 rears with 235 MT radials
Work CR01 street wheels
16x6 front, 16x11 rear with 275 Toyo radial tyres
2 x Velo GPT90 Bucket Seats
PWR 3 Core Radiator
Goleby's Parts Silicone Radiator Joiners
Goleby's Parts Fittings & Hose
HBR Roll Cage & Parachute
Shout out to all the brands that make our cars perform they way they do, Mark from Creative customs for the killer paint job, Jesse from Madoc Tuning for the tune and setup and Luke from Wirelab for the tidy wiring of the entire car. Also thanks to the team at 8 Speed Au for the knowledge and help as always.
