Cal's Garage Fox Body

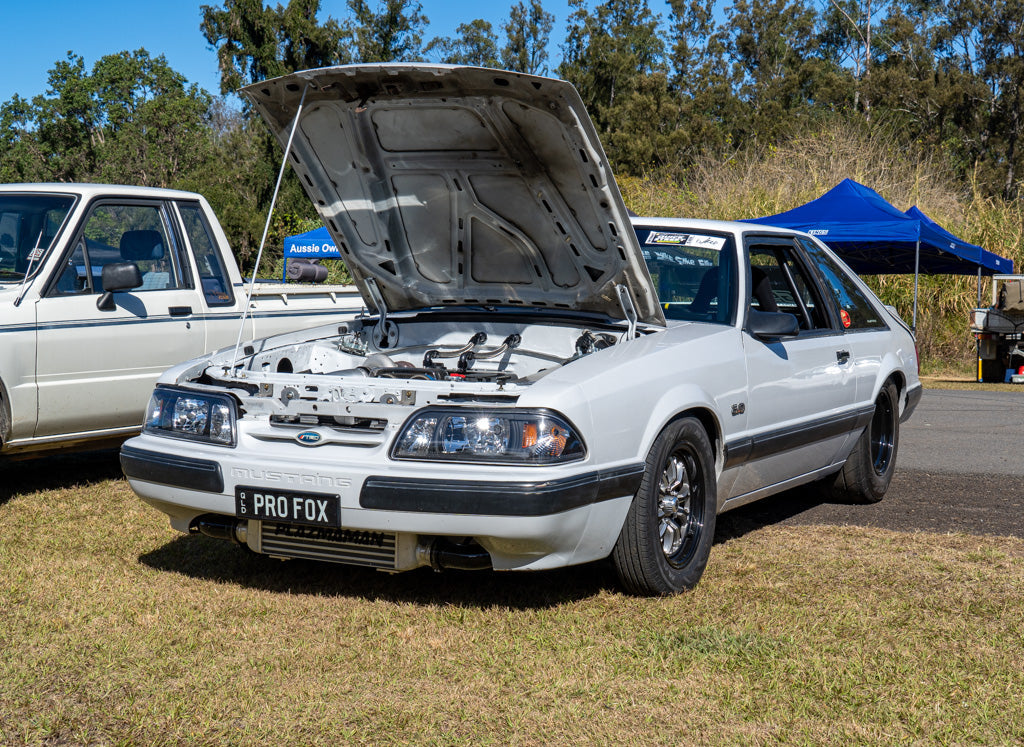

Cal's 1JZGTE Fox Body Mustang

Cal from Cal's Garage purchased his Ford Mustang Fox Body in 2021 with plans to finish and cruise it at Rocky Nats 2022, The goals from the start for the build were,

Streetable, Reliable, Make plenty of Power and be usable at multiple events such as, Drag Racing, Roll Racing, Runway, No prep and most importantly Drag Challenge.

With the car finished only days before Rocky Nats 2022 and making a stout 940HP to the hubs, cruising the streets of Rockhampton was the perfect shake down for the car before it heads into some racing later in 2022.




Precision 7675 Gen1 T4 .96 AR
Turbosmart Gen V 50mm Pro-Gate Wastegate
Turbosmart Gen V Raceport
6Boost T4 Split Pulse High Mount Manifold - 50mm Wastegate Provision
Goleby's Parts Turbo Beanie




 Plazmaman 1JZ-GTE Raw Billet Intake Manifold
74mm Bosch DBW Throttle Body, 6 injector fuel rail
Plazmaman 4" Pro Series Intercooler
Custom Intercooler Piping using Plazmaclamps





Built Powerglide
 4500 RPM Converter
PWR 28 Row Oil Cooler + Spal Fan
Cal's Garage 9" Race Products Diff
QA1 front crossmember and arms
Gazzard Anti roll bar
AFCO Shocks
Willwood Brakes




Haltech Elite 2500 + Wire Lab Custom harness
Haltech WBC-1
Haltech IC-7 Dash
PRP R35 Coil Kit
Bosch Motorsports Sensors
Haltech I/O Box
Haltech GPS
Haltech TCA8




Siemens Deka 2400cc Injectors
Turbosmart FPR
Platinum Racing Products Mechanical fuel pump kit
Speedflow Feed & Return Lines
Speedflow Billet Fuel Filter





Toyota 1JZ-GTE Non VVT-I
CP Pistons 9:0:1 Compression
Spool Imports I Beam Conrods
ARP Main Studs
ACL Race Big End & Main Bearings
Toyota 2JZ-GTE Oil Pump
Billet Main Caps
Kelford Cams 229-F 282/286 Cams
Kelford Cams KVS109-1JZ-T Valve Springs + Retainers
Brian Crower Intake And Exhaust Valves
Toyota Shimless Bucket Conversion
ARP Head Studs
GRP Full Gasket Kit
Gates Racing Timing Kit + Goleby's Parts Cam Gears + Ross Engineering Billet Tensioner
Toyota Water Pump
Ross Performance Parts Race Series Harmonic Balancer


Wheels - Jegs Spike
Fronts - 15 x 4
Street/Racing Rears - 15 x 10
Hero 275's




1 x Velo GPT90 Bucket Seat
Pwr Radiator



Built inhouse @Cal's Garage

Media Credits - Josh Maher
